Features
- Excellent anti-abraision properties contribute to longer working life
- High UV light resistance
- Highly flexible, easy to handle
- 50% better breaking strength compared to BS and ISO standards
Applications
- Mooring lines
- General and commercial fishing rope
- Anchor lines

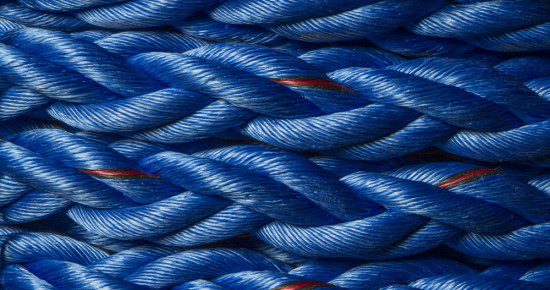

Because Defiance™ Superdan rope is manufactured from high tenacity polypropylene yarns, Superdan offers easy handling, high strength and excellent abrasion resistance.
Tech Specs
- Class II Rope
- Specific Gravity: 0.91
- Elastic Elongation Percentage: At % of breaking strength – 20-22%
- Splicing Procedures Required
- Eye splice – 8-strand/Class II Rope
- End for End splice – 8-strand/Class II Rope
| Size Dia. | Size Circ. | Dia. MM | Weight Per 100’/Lbs | Min Break Strength/Lbs |
|---|---|---|---|---|
| 1 | 3 | 24 | 19.4 | 24,000 |
| 1-1/8 | 3-1/2 | 28 | 26.5 | 31,900 |
| 1-5/16 | 4 | 32 | 34.3 | 40,800 |
| 1-1/2 | 4-1/2 | 36 | 43.1 | 50,700 |
| 1-5/8 | 5 | 40 | 53.1 | 62,500 |
| 1-3/4 | 5-1/2 | 44 | 65.5 | 74,700 |
| 2 | 6 | 48 | 80.2 | 91,400 |
| 2-1/8 | 6-1/2 | 52 | 93.5 | 105,300 |
| 2-1/4 | 7 | 56 | 108.5 | 120,600 |
| 2-1/2 | 7-1/2 | 60 | 124.4 | 137,200 |
| 2-5/8 | 8 | 64 | 141.1 | 155,000 |
| 2-3/4 | 8-1/2 | 68 | 156.6 | 173,200 |
| 3 | 9 | 72 | 178.1 | 197,100 |
| 3-1/4 | 10 | 80 | 220.0 | 238,600 |
| 3-5/8 | 11 | 88 | 259.4 | 281,300 |
| 4 | 12 | 96 | 314.5 | 336,600 |
| 4-1/4 | 13 | 104 | 368.6 | 394,400 |
| 4-5/8 | 14 | 112 | 426.9 | 456,900 |
| 5 | 15 | 120 | 481.4 | 515,200 |
