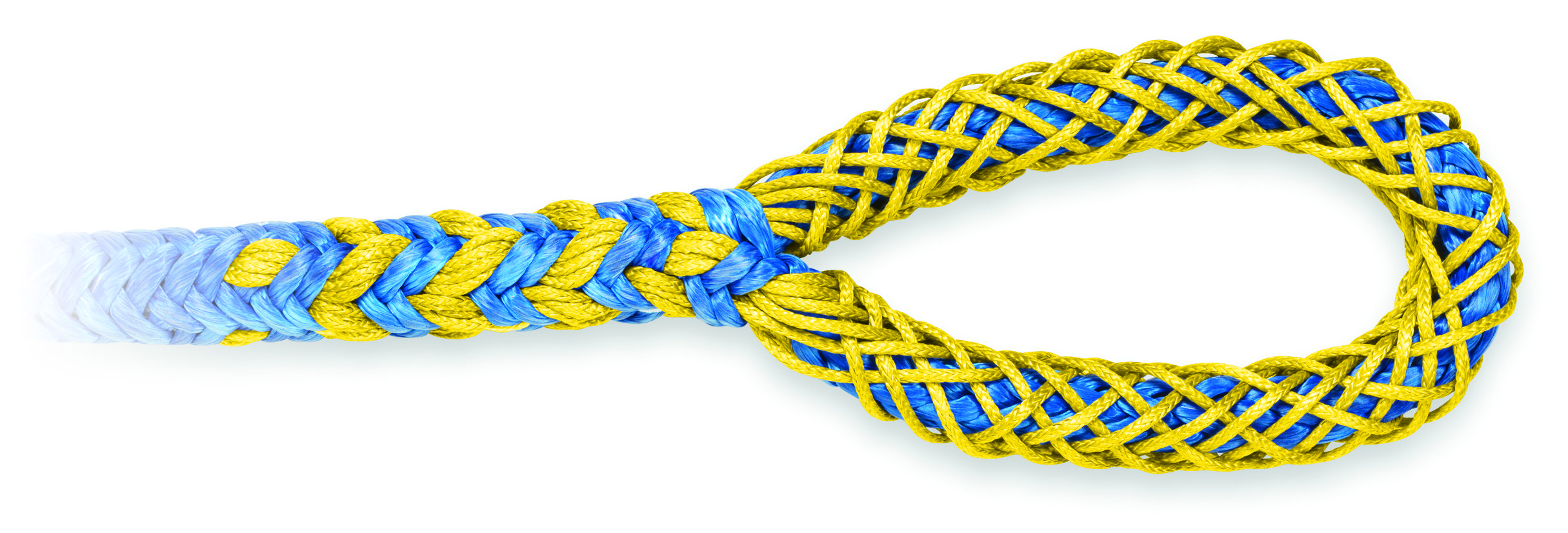

Dynalene is a unique product that protects the strength member from abrasion, yet allows the rope to be easily inspected for both internal and external fiber wear. Braided from cut and abrasion resistant Dyneema® fiber, Dynalene is permanently spliced over the rope, and acts as a sacrificial cover protecting it from abrasion and wear in mooring, tug, and offshore applications.
Dynalene is fully repairable in the field, does not absorb water, and floats. It is easy to install anywhere on the rope.
Features
- Lightweight
- Floats
- Easy inspection without removal
- Excellent durability
Dynalene can be installed as a fixed or adjustable chafe solution. Great choice for mooring, tug, and offshore applications. Field repairable, rope is easily inspected without removal.
| Size Designation | FITS ROPE Diameter | COVERS SPLICE Diameter | ||
|---|---|---|---|---|
| INCHES | MILLIMETERS | INCHES | MILLIMETERS | |
| Small | 7/8″ – 1-1/4″ | 22 – 30 mm | 5/8″ – 1″ | 16 – 24 mm |
| Medium | 1-5/16″ – 1-5/8″ | 32 – 40 mm | 1-1/8″ – 1-3/8″ | 28 – 34 mm |
| Large | 1-3/4″ – 3″ | 44 – 72 mm | 1-1/2″ – 2-5/8″ | 36 – 64 mm |
| Extra-Large | 3-1/4″ – 4″ | 80 – 96 mm | 2-3/4″ – 3-1/4″ | 68 – 80 mm |
| Size Designation | FITS ROPE Diameter | COVERS SPLICE Diameter | ||
|---|---|---|---|---|
| INCHES | MILLIMETERS | INCHES | MILLIMETERS | |
| Small | 2-3/4″ – 3-3/4″ | 66 – 90 mm | 2″ – 3″ | 48 – 72 mm |
| Medium | 4″ – 5″ | 96 – 120 mm | 3-1/2″ – 4-1/8″ | 84 – 100 mm |
| Large | 5-1/2″ – 9″ | 132 – 216 mm | 4-1/2″ – 8″ | 108 – 192 mm |
| Extra-Large | 10″ – 12″ | 240 – 288 mm | 8-1/2″ – 10″ | 204 – 240 mm |
