  • Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, Crosby products meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.


401, 402 and 403 swivels are positioning devices and are not intended to rotate under load. For load swivels see pages 116- 119. Use in corrosive environment requires shank and nut inspection in accordance with ASME B30.10-1.10.4(b)(5)(c)2009.

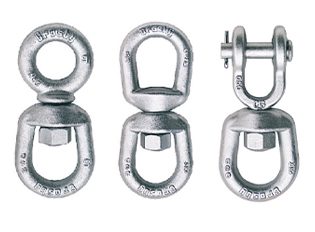

G-401 Chain Swivels

  • Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 1, except for those provisions required of the contractor. For more information, see page 426.

Size
(in.)		 G-401
Stock No.		 Working
Load
Limit
(lbs.)*		 Weight
Each
(lbs.)		 Dimensions
(in.)
A B C D E G J M R U V
1/4 1016233 850 .13 1.25 .69 .75 .62 1.12 .25 .69 .31 2.25 1.69 1.25
5/16 1016251 1250 .25 1.63 .81 1.00 .75 1.38 .31 .81 .38 2.72 2.06 1.47
3/8 1016279 2250 .54 2.00 .94 1.25 1.00 1.75 .38 1.00 .50 3.44 2.50 1.88
1/2 1016297 3600 1.12 2.50 1.31 1.50 1.25 2.25 .50 1.31 .63 4.25 3.19 2.44
5/8 1016313 5200 2.09 3.00 1.56 1.75 1.50 2.75 .62 1.50 .75 5.13 3.88 2.94
3/4 1016331 7200 3.09 3.50 1.75 2.00 1.75 3.25 .75 1.88 .88 5.78 4.94 3.46

*Ultimate Load is 5 times the Working Load Limit.

G-402 Regular Swivels

  • Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class
    2, except for those provisions required of the contractor. For more information, see page
    426.

Size
(in.)		 G-402
Stock No.		 Working
Load
Limit
(lbs.)*		 Weight
Each
(lbs.)		 Dimensions
(in.)
A B C D J M R S
1/4 1016019 850 .21 1.25 .69 .75 1.06 .69 .31 2.94 1.69
5/16 1016037 1250 .39 1.63 .81 1.00 1.25 .81 .38 3.56 2.06
3/8 1016055 2250 .71 2.00 .94 1.25 1.50 1.00 .50 4.31 2.50
1/2 1016073 3600 1.32 2.50 1.31 1.50 2.00 1.31 .63 5.44 3.19
5/8 1016091 5200 2.49 3.00 1.56 1.75 2.38 1.50 .75 6.56 3.88
3/4 1016117 7200 4.02 3.50 1.75 2.00 2.63 1.88 .88 7.19 4.31
7/8 1016135 10000 6.25 4.00 2.06 2.25 3.06 2.13 1.00 8.38 5.00
1 1016153 12500 8.95 4.50 2.31 2.50 3.50 2.38 1.13 9.63 5.75
1-1/4 1016199 18000 16.37 5.63 2.69 3.13 3.69 3.00 1.50 11.44 6.75
1-1/2 1016215 45200 45.79 7.09 3.88 4.09 3.88 3.75 2.25 16.69 9.91

*Ultimate Load is 5 times the Working Load Limit.

G-403 Jaw End Swivels

  • Meets the performance requirements of Federal Specification RR-C-271F, Type
    VII, Class 3, except for those provisions required of the contractor. For more
    information, see page 426.
  • U.S. Patent 5,381,650 and other equivalents.

Size
(in.)		 G-403
Stock No.		 Working
Load
Limit
(lbs.)*		 Weight
Each
(lbs.)		 Dimensions
(in.)
A B C G J K L M N P R U V
1/4 1016395 850 .21 1.25 .69 .75 .69 .69 .47 1.03 .31 .88 .25 2.63 1.69 1.69
5/16 1016411 1250 .34 1.63 .81 1.00 .81 .81 .50 1.13 .38 .88 .31 2.94 2.06 1.81
3/8 1016439 2250 .66 2.00 .94 1.25 1.00 1.00 .63 1.41 .50 1.06 .38 3.63 2.50 2.25
1/2 1016457 3600 1.34 2.50 1.31 1.50 1.31 1.31 .75 1.75 .63 1.31 .50 4.50 3.19 2.88
5/8 1016475 5200 2.48 3.00 1.56 1.75 1.63 1.50 .94 2.06 .75 1.50 .63 5.31 3.88 3.44
3/4 1016493 7200 3.88 3.50 1.75 2.00 1.88 1.88 1.13 2.53 .88 1.75 .75 6.06 4.31 4.00
7/8 1016518 10000 5.87 4.00 2.06 2.25 2.13 2.13 1.19 2.75 1.00 2.06 .88 7.00 5.00 4.53
1 1016536 12500 9.84 4.50 2.31 2.50 2.63 2.38 1.75 3.72 1.13 2.81 1.13 8.56 5.75 5.94
1-1/4 1016572 18000 15.75 5.69 2.69 3.13 3.13 3.00 2.06 4.31 1.63 2.81 1.38 9.75 7.06 6.38
1-1/2 1016590 45200 54.75 7.00 3.88 4.00 5.63 4.00 2.88 6.00 2.25 4.44 2.25 14.25 10.00 10.84

*Ultimate Load is 5 times the Working Load Limit.
