- Forged Steel Sockets through 1-1/2”, cast alloy steel 1-5/8” through 4”.
- Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.
Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC,
or IWRC wire rope. Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is the greater.
G-416 / S-416
Open Grooved Sockets meet the performance requirements of Federal Specification RR-S-550D, Type A, except for those provisions required of the contractor. For additional information, see page 426.
NOTICE: All cast steel sockets 1-5/8” and larger are magnetic particle inspected and ultrasonic inspected. Proof testing available on special order. Drawing illustrates one groove used on sockets 1/4” through 3/4”. Sizes 7/8” through 1-1/2” use 2 grooves. Sizes 1 5/8” and larger use 3 grooves.
| S-502 Closed Socket Specifications | Max. After Swage Dim. (in.) |
Press / Die Data | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-502 Stock No. |
Rope Size* | Wt. Each (lbs.) |
Before Swage Dimensions (in.) |
Die Description | Stock No. | Side Load | |||||||||||
| (in.) | (mm) | A | B | C | D | E | F | H | L | 500 1000 1500 Ton 5 x 7 |
1500 3000 Ton 6 x 12 |
1500 Ton 6 x 12 |
3000 Ton 6 x 12 |
||||
| 1039325 | 1/4 | 2 | .33 | 4.28 | .50 | 1.38 | .76 | 2.19 | .50 | .38 | .3.50 | .46 | 1/4 Socket | 1192845 | – | – | – |
| 1039343 | 5/16 | 8 | .75 | 5.42 | .77 | 1.62 | .88 | 3.25 | .68 | .50 | 4.50 | .71 | 5/16-3/8 Socket | 1192863 | – | – | – |
| 1039361 | 3/8 | 9-10 | .72 | 5.42 | .78 | 1.62 | .88 | 3.25 | .68 | .56 | 4.50 | .71 | 5/16-3/8 Socket | 1192863 | – | – | – |
| 1039389 | 7/16 | 11-12 | 1.42 | 6.88 | 1.01 | 2.00 | 1.07 | 4.31 | .87 | .69 | 5.75 | .91 | 7/16-1/2 Socket | 1192881 | – | – | – |
| 1039405 | 1/2 | 13 | 1.42 | 6.88 | 1.01 | 2.00 | 1.07 | 4.31 | .87 | .81 | 5.75 | .91 | 7/16-1/2 Socket | 1192881 | – | – | – |
| 1039423 | 9/16 | 14 | 2.92 | 8.59 | 1.27 | 2.38 | 1.28 | 5.38 | 1.14 | .94 | 7.25 | 1.16 | 9/16-5/8 Socket | 1192907 | – | – | – |
| 1039441 | 5/8 | 16 | 2.85 | 8.59 | .1.27 | 2.38 | 1.28 | 5.38 | 1.14 | 1.13 | 7.25 | 1.16 | 9/16-5/8 Socket | 1192907 | – | – | – |
| 1039469 | 3/4 | 18-20 | 5.00 | 10.25 | 1.56 | 2.88 | 1.49 | 6.44 | 1.33 | 1.25 | 8.63 | 1.42 | 3/4 Socket | 1192925 | – | – | – |
| 1039487 | 7/8 | 22 | 6.80 | 11.87 | 1.72 | 3.12 | 1.73 | 7.50 | 1.53 | 1.50 | 10.09 | 1.55 | 7/8 Socket | 1192943 | – | – | – |
| 1039502 | 1 | 24-26 | 10.40 | 13.56 | 2.00 | 3.62 | 2.11 | 8.63 | 1.78 | 1.63 | 11.50 | 1.80 | 1 Socket | 1192961 | – | – | – |
| 1039520 | 1-1/8 | 28 | 14.82 | 15.03 | 2.25 | 4.00 | 2.37 | 9.75 | 2.03 | 1.75 | 12.75 | 2.05 | 1-1/8 Socket | 1192989 | – | – | – |
| 1039548 | 1-1/4 | 32 | 21.57 | 16.94 | 2.53 | 4.50 | 2.62 | 10.81 | 2.25 | 2.00 | 14.38 | 2.30 | 1-1/4 Socket | 1193005 | – | – | – |
| 1039566 | 1-3/8 | 34-36 | 28.54 | 18.59 | 2.81 | 5.00 | 2.62 | 11.88 | 2.29 | 2.25 | 15.75 | 2.56 | 1-3/8 Socket | 1193023 | – | – | – |
| 1039584 | 1-1/2 | 38-40 | 38.06 | 20.13 | 3.08 | 5.38 | 2.87 | 12.81 | 2.56 | 2.50 | 17.00 | 2.81 | 1-1/2 Socket | 1193041 | 1191267 | 1195355 | 1195192 |
| 1039600 | 1-3/4 | 44 | 51.00 | 23.56 | 3.40 | 6.25 | 3.63 | 15.06 | 3.08 | 2.88 | 20.00 | 3.06 | 1-3/4 Socket | 1193069 | 1191276 | 1195367 | 1195209 |
| 1042589 | 2 | 48-52 | 89.25 | 27.13 | 3.94 | 7.25 | 3.88 | 17.06 | 3.31 | 3.12 | 23.00 | 3.56 | 2 Socket | 1193087 | 1191294 | 1195379 | 1195218 |
* Cast Alloy Steel.

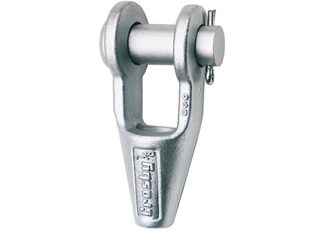

NOTE: Available with bolt nut and cotter. Contact Crosby for more information.
