- Wide range of sizes available:
- 1-1/4” thru 4” Wire Line
- “M-Line” socket terminations have a 100% efficiency rating, based on the catalog strength of the wire rope. Ratings are based on recommended use with 6 x 7, 6 x 19, or 6 x 36, IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire rope. Strand constructed with minimal number of wires (e.g. 1 x 7) requires special consideration that socket basket be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is the greater.
- Galvanized finish.
- Designed for today’s higher strength classes of wire rope.
- Design of bail allows for easy connection to shackles and other connecting links.
- Socket design utilizes features to keep cone from rotating.

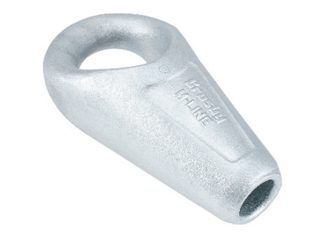

G-517
NOTICE: All Cast Mooring Sockets are Individually Magnetic Particle Inspected and Ultrasonic Inspected.
Wire Rope Size |
Ultimate Load (t) |
G-517 Stock No. |
Weight Each (lbs.) |
Dimensions (in.) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
(in.) | (mm) | A | B | C | D | E | F | G | H | |||
1-1/4 – 1-3/8 | 32-35 | 113 | 1004943 | 17 | 1.63 | 3.09 | 3.63 | 4.45 | 1.44 | 5.13 | 10.89 | 1.53 |
1-1/2 – 1-5/8 | 38-41 | 136 | 1004961 | 30 | 1.95 | 3.69 | 4.32 | 5.43 | 1.60 | 6.31 | 13.00 | 1.81 |
1-3/4 – 1-7/8 | 44-48 | 181 | 1004989 | 43 | 2.23 | 4.16 | 4.53 | 6.30 | 1.84 | 7.22 | 14.11 | 2.09 |
2 – 2-1/8 | 50-54 | 227 | 1005002 | 57 | 2.50 | 4.75 | 5.26 | 7.02 | 2.09 | 8.25 | 16.02 | 2.24 |
2-1/4 – 2-3/8 | 57-60 | 277 | 1005020 | 76 | 2.78 | 5.25 | 5.78 | 7.72 | 2.31 | 9.16 | 17.90 | 2.62 |
2-1/2 – 2-5/8 | 64-67 | 363 | 1005048 | 106 | 3.05 | 5.88 | 6.71 | 8.53 | 2.69 | 10.13 | 19.89 | 2.66 |
2-3/4 – 2-7/8 | 70-73 | 454 | 1005066 | 138 | 3.33 | 6.50 | 7.13 | 9.35 | 3.00 | 11.09 | 21.63 | 2.98 |
3 – 3-1/8 | 76-79 | 544 | 1005084 | 193 | 3.50 | 7.25 | 7.74 | 10.30 | 3.25 | 12.31 | 23.50 | 3.24 |
3-1/4 – 3-3/8 | 82-86 | 635 | 1005105 | 229 | 3.81 | 7.62 | 8.80 | 10.94 | 3.50 | 13.13 | 25.75 | 3.43 |
3-1/2 – 3-5/8 | 88-92 | 735 | 1005123 | 279 | 4.15 | 8.00 | 9.06 | 11.72 | 3.69 | 13.96 | 27.70 | 4.12 |
3-3/4 – 4 | 95-102 | 907 | 1005141 | 384 | 4.39 | 8.75 | 10.50 | 12.91 | 3.69 | 15.88 | 30.13 | 4.46 |
