Meets the performance requirements of Federal Specifications FF-T79lb, Type 1, Form 1– Class 8, and ASTM F-1145, except for those provisions required of the contractor.
- Hot Dip galvanized.
- End fittings are Quenched and Tempered, bodies heat treated by normalizing.
- Hooks are forged with a greater cross sectional area that results in a stronger hook with better fatigue properties.
- Modified UNJ thread on end fittings for improved fatigue properties. Body has UNC threads.
- Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 1/4” through2 1/2”, a shackle one size smaller can be reeved through eye.
- Forged jaw ends are fitted with bolts and nuts on sizes 1/4” through 5/8”, and pins and cotters on sizes 3/4” through 2 3/4”.
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.

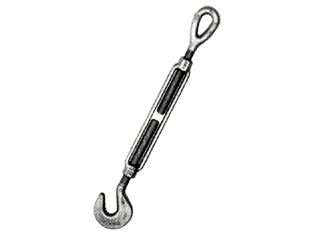

HG-225
Thread Diameter & Take Up (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Dimensions (in.) |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X | BB | |||
1/4 x 4 | 400 | .29 | .25 | .45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | .78 | .34 | 1.75 | 4.00 |
5/16 x 4 1/2 | 700 | .49 | .31 | .50 | 1.94 | 1.50 | 13.19 | 8.69 | 13.47 | 9.47 | .94 | .44 | 2.09 | 4.50 |
3/8 x 6 | 1000 | .78 | .38 | .56 | 2.30 | 1.77 | 16.98 | 10.98 | 17.94 | 11.94 | 1.12 | .53 | 2.52 | 6.00 |
1/2 x 6 | 1500 | 1.61 | .50 | .66 | 2.94 | 2.28 | 19.45 | 12.45 | 20.67 | 13.67 | 1.42 | .72 | 3.23 | 6.00 |
1/2 x 9 | 1500 | 1.85 | .50 | .66 | 2.94 | 2.28 | 25.45 | 15.45 | 26.67 | 16.67 | 1.42 | .72 | 3.23 | 9.00 |
1/2 x 12 | 1500 | 2.26 | .50 | .66 | 2.94 | 2.28 | 31.45 | 18.45 | 32.67 | 19.67 | 1.42 | .72 | 3.23 | 12.00 |
5/8 x 6 | 2250 | 2.70 | .63 | .90 | 3.69 | 2.81 | 21.96 | 13.96 | 22.72 | 15.47 | 1.80 | .88 | 3.90 | 6.00 |
5/8 x 9 | 2250 | 3.13 | .63 | .90 | 3.69 | 2.81 | 27.96 | 16.96 | 28.72 | 18.47 | 1.80 | .88 | 3.90 | 9.00 |
5/8 x 12 | 2250 | 3.78 | .63 | .90 | 3.69 | 2.81 | 33.21 | 19.96 | 34.72 | 21.47 | 1.80 | .88 | 3.90 | 12.00 |
3/4 x 6 | 3000 | 3.89 | .75 | .98 | 4.52 | 3.33 | 23.13 | 15.63 | 24.95 | 17.45 | 2.09 | 1.00 | 4.69 | 6.00 |
3/4 x 9 | 3000 | 4.61 | .75 | .98 | 4.52 | 3.33 | 29.13 | 18.63 | 30.95 | 20.45 | 2.09 | 1.00 | 4.69 | 9.00 |
3/4 x12 | 3000 | 5.83 | .75 | .98 | 4.52 | 3.33 | 35.13 | 21.63 | 36.95 | 23.45 | 2.09 | 1.00 | 4.69 | 12.00 |
3/4 x 18 | 3000 | 6.33 | .75 | .98 | 4.52 | 3.33 | 47.13 | 27.63 | 48.95 | 29.45 | 2.09 | 1.00 | 4.69 | 18.00 |
7/8 x 12 | 4000 | 8.10 | .88 | 1.13 | 5.19 | 3.78 | 36.53 | 22.78 | 38.66 | 24.91 | 2.38 | 1.25 | 5.10 | 12.00 |
7/8 x 18 | 4000 | 9.95 | .88 | 1.13 | 5.19 | 3.78 | 48.53 | 28.78 | 50.66 | 30.91 | 2.38 | 1.25 | 5.10 | 18.00 |
1 x 6 | 5000 | 9.33 | 1.00 | 1.25 | 5.84 | 4.25 | 26.80 | 18.80 | 29.20 | 21.20 | 3.00 | 1.44 | 6.36 | 6.00 |
1 x 12 | 5000 | 11.93 | 1.00 | 1.25 | 5.84 | 4.25 | 38.80 | 24.80 | 41.20 | 27.20 | 3.00 | 1.44 | 6.36 | 12.00 |
1 x 18 | 5000 | 14.00 | 1.00 | 1.25 | 5.84 | 4.25 | 50.80 | 30.80 | 53.20 | 33.20 | 3.00 | 1.44 | 6.36 | 18.00 |
1 x 24 | 5000 | 17.25 | 1.00 | 1.25 | 5.84 | 4.25 | 62.80 | 36.80 | 65.20 | 39.20 | 3.00 | 1.44 | 6.36 | 24.00 |
1 1/4 x 12 | 6500 | 20.58 | 1.25 | 1.50 | 7.22 | 5.13 | 41.63 | 27.13 | 44.56 | 30.06 | 3.56 | 1.81 | 7.72 | 12.00 |
1 1/4 x 18 | 6500 | 23.00 | 1.25 | 1.50 | 7.22 | 5.13 | 53.63 | 33.13 | 56.56 | 36.06 | 3.56 | 1.81 | 7.72 | 18.00 |
1 1/4 x 24 | 6500 | 27.00 | 1.25 | 1.50 | 7.22 | 5.13 | 65.63 | 39.13 | 68.56 | 42.06 | 3.56 | 1.81 | 7.72 | 24.00 |
1 1/2 x 12 | 7500 | 27.50 | 1.50 | 1.88 | 8.34 | 5.75 | 44.72 | 29.72 | 47.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12.00 |
1 1/2 x 18 | 7500 | 31.00 | 1.50 | 1.88 | 8.34 | 5.75 | 56.72 | 35.72 | 59.72 | 38.72 | 4.06 | 2.12 | 8.62 | 18.00 |
1 1/2 x 24 | 7500 | 37.50 | 1.50 | 1.88 | 8.34 | 5.75 | 68.72 | 41.72 | 71.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24.00 |
