- High Tensile Carbon Steel.
- Minimum Ultimate load is 4 times the Working Load Limit.
- Proof Tested at 2 times the Working Load Limit with certification.
- Permanently embossed with CG® (Crosby Group) and 7 (Grade).
- Finish – Yellow Dichromate.
- Standard container – fiber drum.

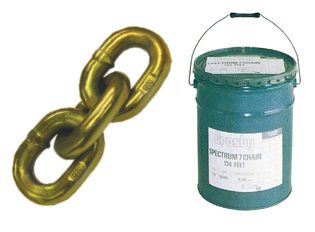

Spectrum 7® DRUM
Chain Size (in.) |
Working Load Limit (lbs.)* |
Feet Per Drum |
Weight Per 100 Feet (lbs.) |
Drum Stock No. |
1/2 Drum Stock No. |
---|---|---|---|---|---|
1/4 | 3150 | 800 | 81 | 273153 | 273260 |
5/16 | 4700 | 550 | 98 | 273162 | 273279 |
3/8 | 6600 | 400 | 141 | 273171 | 273288 |
7/16 | 8750 | 300 | 216 | 273180 | 273297 |
1/2 | 11300 | 200 | 246 | 273199 | 273304 |
* Proof Loaded at 2 times the Working Load Limit.
Spectrum 7® PAIL
Chain Size (in.) |
Weight Per Pail (lbs.) |
Feet Per Pail |
Stock No. |
---|---|---|---|
1/4 | 109 | 134 | 273377 |
5/16 | 88 | 90 | 273386 |
3/8 | 98 | 64 | 273395 |
NOTE :
* Spectrum 7® High Tensile Transport chain is not recommended for overhead lifting. For these applications, Spectrum 8® or Spectrum 10® Alloy chain should be used.
