- Carbon Steel.
- Minimum Ultimate load is 4 times the Working Load Limit.
- Proof Tested at 2 times the Working Load Limit with certification.
- Permanently embossed with CG (Crosby Group) and 3 (Grade).
- Finish – Self colored and galvanized.
- Standard Container – fiber drum.

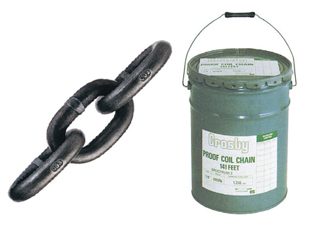

Spectrum 4® DRUM
| Chain Size (in.) |
Working Load Limit (lbs.)* |
Feet Per Drum |
Weight Per 100 Feet (lbs.) |
Drum Stock No. S.C. |
Drum Stock No. Galv. |
|---|---|---|---|---|---|
| 1/4 | 2600 | 800 | 70 | 272788 | 272895 |
| 5/16 | 3900 | 550 | 106 | 272797 | 272902 |
| 3/8 | 5400 | 400 | 154 | 272804 | 272911 |
| 7/16 | 7200 | 300 | 209 | 272813 | 272920 |
| 1/2 | 9200 | 200 | 267 | 272822 | 272939 |
| 5/8 | 13000 | 150 | 402 | 272831 | 272948 |
| 3/4 | 20200 | 100 | 567 | 272840 | 272957 |
* Proof Loaded at 1.5 times the Working Load Limit.
Spectrum 4® PAIL
| Chain Size (in.) |
Weight Per Pail (lbs.) |
Feet Per Pail |
Stock No. S.C. |
|---|---|---|---|
| 1/4 | 93 | 134 | 273000 |
| 5/16 | 95 | 90 | 273019 |
| 3/8 | 98 | 64 | 273028 |
NOTE :
* Spectrum 4® High Test Chain is not recommended for overhead lifting.
For these applications, Spectrum 8® or Spectrum 10® Alloy chain should be used.
