- Carbon Steel.
- Minimum Ultimate load is 4 times the Working Load Limit.
- Proof Tested at 2 times the Working Load Limit with certification.
- Permanently embossed with CG (Crosby Group) and 3 (Grade).
- Finish – Self colored and galvanized.
- Standard Container – fiber drum.

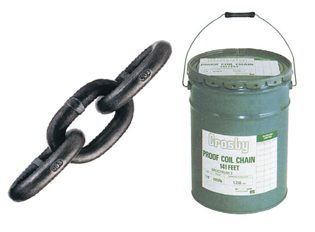

Spectrum 3® DRUM
Chain Size (in.) |
Working Load Limit (lbs.)* |
Feet Per Drum |
Weight Per 100 Feet (lbs.) |
Drum Stock No. S.C. |
Drum Stock No. Galv. |
---|---|---|---|---|---|
3/16 | 800 | 800 | 39 | 275151 | 276150 |
1/4 | 1300 | 800 | 65 | 275259 | 276258 |
5/16 | 1900 | 550 | 100 | 275357 | 276356 |
3/8 | 2650 | 400 | 144 | 275455 | 276454 |
1/2 | 4500 | 200 | 250 | 275552 | 276551 |
5/8 | 6900 | 150 | 421 | 275650 | 276659 |
3/4 | 10600 | 100 | 649 | 275758 | 276757 |
* Proof Loaded at 2 times the Working Load Limit.
Spectrum 3® PAIL
Chain Size (in.) |
Weight Per Pail (lbs.) |
Feet Per Pail |
Stock No. S.C. |
Stock No. Galv. |
---|---|---|---|---|
3/16 | 98 | 250 | 275115 | 276114 |
1/4 | 92 | 141 | 275213 | 276212 |
5/16 | 91 | 92 | 275311 | 276310 |
3/8 | 91 | 63 | 275419 | 276418 |
NOTE :
* Spectrum 3® Proof Coil Chain is not recommended for overhead lifting. For these applications, Spectrum 8® or Spectrum 10® Alloy chain should be used.
