• Entire clip is Galvanized to resist corrosive and rusting action.
  • Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 3/16” – 7/8” sizes, and 90% for sizes 1” through 1-1/2”.
  • Bolts are an integral part of the saddle. Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation.
  • All sizes have forged steel saddles.
  • All Clips are individually bagged or tagged with proper application instructions and warning information.
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
  • Assembled with standard heavy hex nuts.

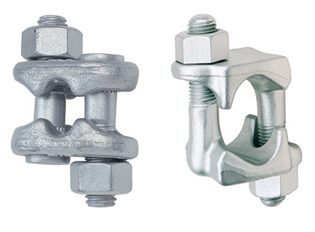

NEW STYLE
FIST GRIP®
CLIPS
3/16” – 5/8”

Fist Grip® wire clips meet or exceed the performance requirements of Federal Specification FF-C-450 Type III, Class 1, except for those provisions required of the contractor. For additional information, see page 426.

3/16” – 5/8”
FIST GRIP®
CLIPS 3/4” – 1-1/2”
3/4” – 1-1/2”

Rope Size G-429
Stock No.		 Std.
Package
Qty.		 Weight
Per 100
(lbs.)		 Dimensions
(in.)
(in.)* (mm) C D E G N
3/16 – 1/4 5-7 1010471 100 23 .40 .94 .38 1.41 1.44
5/16 8 1010499 100 28 .47 1.06 .38 1.50 1.54
3/8 10 1010514 50 40 .51 1.06 .44 1.84 1.78
7/16 – 1/2 11-13 1010532 50 62 .59 1.25 .50 2.21 2.15
9/16 – 5/8 14-16 1010550 50 103 .72 1.50 .63 2.72 2.57
3/4 18-20 1010578 25 175 .86 1.81 .75 2.94 2.67
7/8 22 1010596 25 225 .97 2.12 .75 3.31 2.86
1 24-26 1010612 10 300 1.13 2.25 .75 3.72 3.06
1-1/8 28-30 1010630 10 400 1.28 2.38 .88 4.22 3.44
1-1/4 32-34 1010658 10 400 1.34 2.50 .88 4.25 3.56
1-3/8 – 1-1/2 36-40 1010676 Bulk 700 1.56 3.00 1.00 5.56 4.12

* Sizes through 5/8” incorporate New Style Design.
