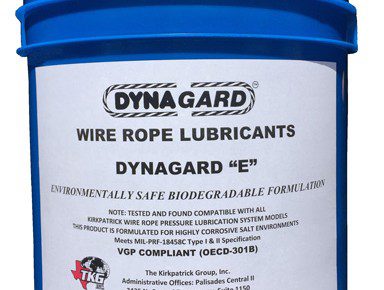

Environmentally Safe Wire Rope Lubricant, Dynagard “E” is a revolutionary non-toxic 97% biodegradable wire rope lubricant that meets the performance levels of petroleum-based greases in areas of fluid film and corrosion protection of wire rope strands. Exceptional for manual application; Dynagard “E” also meets the operational requirements for all Kirkpatrick Wire Rope Lubrication System Models providing optimum coating and penetration prolonging the working life of wire rope while at the same time meeting environmental concerns of our customers. Dynagard “E” was the first seed oil based high viscosity grease introduced onto the world market in 1993. It also was the benchmark product used in 2002 to establish MIL-PRF-18458C Type II requirements under the “Environmentally Preferable Lubricants” program (NSWCCD, Code 632). Documentation is available upon request.

  • National Stock Number: 9150-01-520-8116
  • MIL-PRF-18458C (Type II): Pass
    Meets or surpasses requirements
  • LC50 Bio-Aquatic Rating, EPA/600/4-90/027: 21,085 ppm
    Test duration: 48 Hour
    Test specimen used: Mysidopsis Bahia
  • Biodegradability rating (CEC L-33-A-93): 97%
  • Viscosity: NLGI Grade 2
  • Color: Semi-Clear Brown
  • Texture: Smooth/Creamy
  • Flash Point, ASTM D92 (C/F): 316C/601F
  • Dropping Point, ASTM D566: Over 400 degrees F
  • Oil Separation % (Fed 791-321.1): 1.37
  • Worked Penetration: mm, (ASTM D217): 301
  • Salt Spray, Fed. Std. 791, TM 4001: Pass
  • Accelerated Weathering (Fed 791-4001, ASTM G152, 153): Pass
  • Rust Test, ASTM D-1743: Pass
  • Salt Fog Corrosion Resistance ASTM B117: 1,000 hr./Pass
  • Salt Spray, Fed. Standard 791, TM 4001 (10 Days): Pass
  • Accelerated Weathering (G23, 10 Days): 2 Dots/Pass
  • Load Temperature Flexibility (Sec. 4.4.4 no cracks @ 6 Degrees C): Pass (No Cracking)
  • Load Wear Index (ASTM D2596): 35.58
  • Adhesive% (Sec. 4.6.6. 150 rpm @ 151 +/-2 deg. F): 99.7%
  • Volatile Matter (2.0% Max): 1.02% Max.
