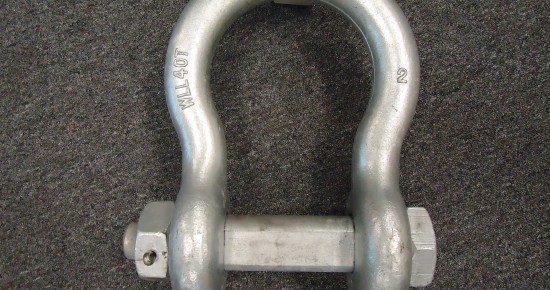

Extra wide opening to accept oversized synthetic rope thimbles. Special design pin with round load bearing surface and flat area that when in place pin will not spin allowing for one-handed installation of nut. Additional safety cotter pin prevents nut from loosening under load. Galvanized and embossed with size and safe working load. Class certified.
2” – 40 Ton Safe Working Load
2-1/2” – 55 Ton Safe Working load

Work Load Size Jaw Width Width Bow Inside Length Pin Weight
40T 2 5-3/4 7-1/2 10 2-1/4 59 lbs
55T 2-1/2 6-1/4 8 10-1/4 2-3/4 100 lbs
