- Designed to connect Grade 100 chain fittings produced with “Engineered Flat” to Grade 100 chain.
- Forged Alloy Steel – Quenched and Tempered.
- Suitable for use with Grade 100 and Grade 80 chain.
- Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
- Locking system that provides for simple assembly and disassembly – no special tools required.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- “Look for the Platinum Color – Crosby Grade 100 Alloy Products.”

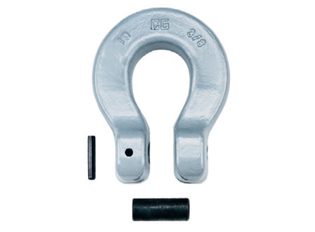

S-1325A
| Chain Size | S-1325A Stock No. |
Working Load Limit (lbs.)* |
Weight Each (lbs.) |
Dimensions (in.) |
|||
|---|---|---|---|---|---|---|---|
| (in.) | (mm) | A | B | C | |||
| – | 6 | 1098496 | 3200 | .25 | 1.03 | .74 | 1.74 |
| 1/4 | 7 | 1098500 | 4300 | .50 | 1.41 | .88 | 2.32 |
| 5/16 | 8 | 1098504 | 5700 | .50 | 1.40 | .88 | 2.32 |
| 3/8 | 10 | 1098508 | 8800 | .80 | 1.84 | 1.18 | 2.72 |
| 1/2 | 13 | 1098512 | 15000 | 1.70 | 2.12 | 1.50 | 3.62 |
| 5/8 | 16 | 1098516 | 22600 | 1.90 | 2.84 | 1.96 | 4.40 |
* Minimum Ultimate Load is 4 times the Working Load Limit.
