• Capacities 1/3 thru 150 metric tons, grade 6.
  • Working Load Limit and grade “6” permanently shown on every shackle.
  • Forged – Quenched and Tempered, with alloy pins.
  • Hot Dip galvanized or Self Colored. (85, 120, and 150 metric ton shackles are all hot dip galvanized bows and the bolts are Dimetcoted® and painted red)
  • Fatigue rated (1/3t – 55t).
  • Shackles 25t and larger are RFID EQUIPPED.
  • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).
  • Meets or exceeds all requirements of ASME B30.26.
  • Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
  • Shackles 120 metric tons and larger are proof tested, Magnetic Particle Inspected and provided with Serialized Pin and Bow.
  • Type Approval and certification in accordance with ABS 2006 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes.
  • 3.1 Certification as standard available for charpy and statistical proof test for pg 73 only up to 25 tons to DNV2.7-1 and EN13889.
  • Crosby 2t through 25t G2130 anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 42 joules (31 ft-Lbs.) min. ave. at -20 degree C (-4 degree F). The tests are conducted by Crosby and 3.1 test certification is available upon request.
  • All other 2130 and all 2150 shackles can meet charpy requirements of 42 joules
    (31 ft-Lbs) avg at -20 degree C (-4 degree F) upon special request.
  • Look for the Red Pin® . . . the mark of genuine Crosby quality.

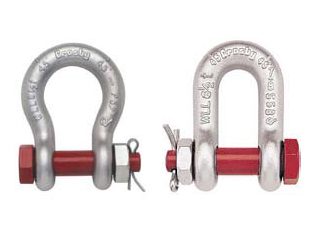

Bolt Type Anchor Shackles


G-2130 / S-2130
G-2130 Bolt Type Anchor shackles with thin head bolt – nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271F Type IVA, Grade A, Class 3, except for those provisions required of the contractor. For additional information, contact Atlantic Cordage.

Nominal
Size
(in.)		 Working
Load
Limit
(t)*		 Stock
No.		 Weight
Each
(lbs.)		 Dimensions
(in.)		 Tolerance
+ / –
G-2130 G-2130 A B C D E F H L N C A
3/16 1/3 ‡ 1019464 – .06 .38 .25 .88 .19 .60 .56 1.47 .98 .19 .06 .06
1/4 1/2 1019466 – .11 .47 .31 1.13 .25 .78 .61 1.84 1.28 .25 .06 .06
5/16 3/4 1019468 – .22 .53 .38 1.22 .31 .84 .75 2.09 1.47 .31 .06 .06
3/8 1 1019470 – .33 .66 .44 1.44 .38 1.03 .91 2.49 1.78 .38 .13 .06
7/16 1-1/2 1019471 – .49 .75 .50 1.69 .44 1.16 1.06 2.91 2.03 .44 .13 .06
1/2 2 1019472 1019481 .79 .81 .64 1.88 .50 1.31 1.19 3.28 2.31 .50 .13 .06
5/8 3-1/4 1019490 1019506 1.68 1.06 .77 2.38 .63 1.69 1.50 4.19 2.94 .69 .13 .06
3/4 4-3/4 1019515 1019524 2.72 1.25 .89 2.81 .75 2.00 1.81 4.97 3.50 .81 .25 .06
7/8 6-1/2 1019533 1019542 3.95 1.44 1.02 3.31 .88 2.28 2.09 5.83 4.03 .97 .25 .06
1 8-1/2 1019551 1019560 5.66 1.69 1.15 3.75 1.00 2.69 2.38 6.56 4.69 1.06 .25 .06
1-1/8 9-1/2 1019579 1019588 8.27 1.81 1.25 4.25 1.13 2.91 2.69 7.47 5.16 1.25 .25 .06
1-1/4 12 1019597 1019604 11.71 2.03 1.40 4.69 1.29 3.25 3.00 8.25 5.75 1.38 .25 .06
1-3/8 13-1/2 1019613 1019622 15.83 2.25 1.53 5.25 1.42 3.63 3.31 9.16 6.38 1.50 .25 .13
1-1/2 17 1019631 1019640 19.00 2.38 1.66 5.75 1.53 3.88 3.63 10.00 6.88 1.62 .25 .13
1-3/4 25 1019659 1019668 33.91 2.88 2.04 7.00 1.84 5.00 4.19 12.34 8.80 2.25 .25 .13
2 35 1019677 1019686 52.25 3.25 2.30 7.75 2.08 5.75 4.81 13.68 10.15 2.40 .25 .13
2-1/2 55 1019695 1019702 98.25 4.13 2.80 10.50 2.71 7.25 5.69 17.90 12.75 3.13 .25 .25
3 † 85 1019711 – 154.00 5.00 3.30 13.00 3.12 7.88 6.50 21.50 14.62 3.62 .25 .25
3-1/2 † 120 ‡ 1019739 – 265.00 5.25 3.76 14.63 3.62 9.00 8.00 24.88 17.02 4.38 .25 .25
4 † 150 ‡ 1019757 – 338.00 5.50 4.26 14.50 4.00 10.00 9.00 25.68 18.00 4.56 .25 .25

Bolt Type Chain Shackles


G-2150 / S-2150
G-2150 Bolt Type Chain shackles. Thin hex head bolt – nut with cotter pin. Meets the performance requirements of Federal Specification RR-C271F Type IVB, Grade A, Class 3, except for those provisions required of the contractors. For additional information, contact Atlantic Cordage.

Nominal
Size
(in.)		 Working
Load
Limit
(t)*		 Stock
No.		 Weight
Each
(lbs.)		 Dimensions
(in.)		 Tolerance
+ / –
G-2150 S-2150 A B D F G K M P R G A
1/4 1/2 1019768 – .13 .47 .31 .25 .62 .91 1.59 .97 1.56 .25 .06 .06
5/16 3/4 1019770 – .23 .53 .38 .31 .75 1.07 1.91 1.15 1.82 .31 .06 .06
3/8 1 1019772 – .33 .66 .44 .38 .92 1.28 2.31 1.42 2.17 .38 .13 .06
7/16 1-1/2 1019774 – .49 .75 .50 .44 1.06 1.48 2.67 1.63 2.51 .44 .13 .06
1/2 2 1019775 1019784 .75 .81 .64 .50 1.18 1.66 3.03 1.81 2.80 .50 .13 .06
5/8 3-1/4 1019793 1019800 1.47 1.06 .77 .63 1.50 2.04 3.76 2.32 3.56 .63 .13 .06
3/4 4-3/4 1019819 1019828 2.52 1.25 .89 .75 1.81 2.40 4.53 2.75 4.15 .81 .25 .06
7/8 6-1/2 1019837 1019846 3.85 1.44 1.02 .88 2.10 2.86 5.33 3.20 4.82 .97 .25 .06
1 8-1/2 1019855 1019864 5.55 1.69 1.15 1.00 2.38 3.24 5.94 3.69 5.39 1.00 .25 .06
1-1/8 9-1/2 1019873 1019882 7.60 1.81 1.25 1.13 2.68 3.61 6.78 4.07 5.90 1.25 .25 .06
1-1/4 12 1019891 1019908 10.81 2.03 1.40 1.25 3.00 3.97 7.50 4.53 6.69 1.38 .25 .06
1-3/8 13-1/2 1019917 1019926 13.75 2.25 1.53 1.38 3.31 4.43 8.28 5.01 7.21 1.50 .25 .13
1-1/2 17 1019935 1019944 18.50 2.38 1.66 1.50 3.62 4.87 9.05 5.38 7.73 1.62 .25 .13
1-3/4 25 1019953 1019962 31.40 2.88 2.04 1.75 4.19 5.82 10.97 6.38 9.33 2.12 .25 .13
2 35 1019971 1019980 46.75 3.25 2.30 2.10 5.00 6.82 12.74 7.25 10.41 2.36 .25 .13
2-1/2 55 1019999 1020004 85.00 4.12 2.80 2.63 5.68 8.07 14.85 9.38 13.58 2.63 .25 .25
3 † 85 1020013 – 124.25 5.00 3.25 3.00 6.50 8.56 16.87 11.00 15.13 3.50 .25 .25
