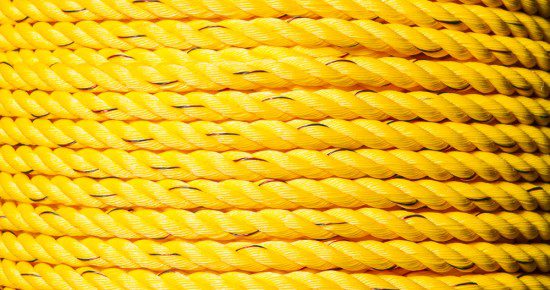

Polypropylene – 100% high tenacity monofilament fiber. All virgin resin, batch tested for tenacity and energy absorption as well as physical consistency. Standard colors are yellowand yellow and black. Black/Red/Black yarn marker in single strand.
Features
- Color Yellow and Yellow & Black • Black/Red/Black yarn marker in single strand
- 100% high tenacity monofilament fiber
- All virgin resin, batch tested for tenacity and energy absorption
- Floats
Applications
- Primary Vessel Mooring Lines
- Water Rescue Lines
- Barrier Rope
- Pulling Line
- Stringing Line
Tech Specs
- Class II Rope
- Specific Gravity: 98 (floats)
Splicing Procedures Required (3 Strand)
- Eye splice – 3 Strand/Class II Rope
- End for End splice – 3 Strand/Class II Rope
3 Strand Polypro | ||||
---|---|---|---|---|
Dia. | Circ. | MM | Min. B/S | Lbs/100′ |
3/16″ | 5/8″ | 5 | 650 | 0.65 |
1/4′ | 3/4″ | 6 | 1125 | 1.15 |
5/16″ | 1″ | 8 | 1710 | 1.8 |
3/8′ | 1-1/8″ | 9 | 2430 | 2.6 |
7/16′ | 1-1/4′ | 11 | 3150 | 3.5 |
1/2″ | 1-1/2′ | 12 | 3780 | 4.6 |
9/16″ | 1-3/4′ | 14 | 4590 | 5.9 |
5/8′ | 2″ | 16 | 5580 | 7.2 |
3/4″ | 2-1/4″ | 19 | 7650 | 10.4 |
13/16″ | 2-1/2″ | 20 | N/A | N/A |
7/8″ | 2-3/4′ | 22 | 10350 | 14.2 |
1″ | 3″ | 24 | 12825 | 18 |
1-1/8″ | 3-1/2″ | 28 | 16000 | 22.8 |
1-1/4″ | 3-3/4″ | 30 | 19350 | 27.6 |
1-5/16″ | 4″ | 32 | 21150 | 30.4 |
1-1/2′ | 4-1/2′ | 36 | 27350 | 39.4 |
1-5/8″ | 5″ | 40 | 31950 | 46 |
1-3/4″ | 5-1/2″ | 44 | 36900 | 53 |
2″ | 6″ | 48 | 46800 | 69 |
2-1/4″ | 7″ | 56 | 59400 | 88 |
2-1/2″ | 7-1/2″ | 60 | 72000 | 107 |
2-5/8″ | 8″ | 64 | 80500 | 120 |
2-7/8″ | 8-1/2″ | 68 | N/A | N/A |
3″ | 9″ | 72 | 102600 | 153 |
3-1/4″ | 10″ | 80 | 121500 | 186 |
3-1/2″ | 11″ | 88 | 144000 | 223 |
4″ | 12″ | 96 | 171900 | 272 |
4-1/4″ | 13″ | 104 | 198000 | 315 |
4-5/8″ | 14″ | 112 | N/A | N/A |
5″ | 15″ | 120 | 256500 | 420 |
