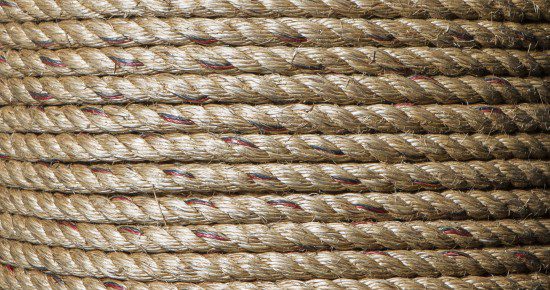

Manila – Natural fiber rope with excellent knot holding ability.
Manufactured to Federal Specification TR-605B and its latest revisions.
Features
- Color Brown
- Black/Red/Black yarn marker in single strand
- 9% Elongation
- dry with 20% load
- Holds knots well
- 380°F critical temperature
Applications
- Various Marine and Industrial applications where tensile strengths are not critical
Tech Specs
Class I Rope • Specific Gravity: 1.38
Splicing Procedures Required (3 Strand)
- Eye splice – 3 Strand/Class I Rope
- End for End splice – 3 Strand/Class I Rope
| Size | 3 Strand Manila | |||
|---|---|---|---|---|
| Dia. | Circ. | MM | Min. B/S | lb.Per 100′ |
| 3/16 | 5/8 | 5 | 405 | 1.5 |
| 1/4 | 3/4 | 6 | 540 | 2 |
| 5/16 | 1 | 8 | 900 | 2.9 |
| 3/8 | 1-1/8 | 9 | 1,215 | 4.1 |
| 7/16 | 1-1/4 | 11 | 1,575 | 5.3 |
| 1/2 | 1-1/2 | 12 | 2,385 | 7.5 |
| 9/16 | 1-3/4 | 14 | 3,105 | 10.4 |
| 5/8 | 2 | 16 | 3,960 | 13.3 |
| 3/4 | 2-1/4 | 18 | 4,860 | 16.7 |
| 13/16 | 2-1/2 | 20 | 5,850 | 19.5 |
| 7/8 | 2-3/4 | 22 | 6,930 | 22.5 |
| 1 | 3 | 24 | 8,100 | 27 |
| 1-1/8 | 3-1/2 | 28 | 10,800 | 36 |
| 1-1/4 | 3-3/4 | 30 | 12,150 | 41.8 |
| 1-5/16 | 4 | 32 | 13,500 | 48 |
| 1-1/2 | 4-1/2 | 36 | 16,650 | 60 |
| 1-5/8 | 5 | 40 | 20,250 | 74.4 |
| 1-3/4 | 5-1/2 | 44 | 23,850 | 89.5 |
| 2 | 6 | 48 | 27,900 | 108 |
| 2-1/4 | 7 | 56 | 36,900 | 146 |
| 2-1/2 | 7-1/2 | 60 | 42,300 | 167 |
| 2-5/8 | 8 | 64 | 46,800 | 191 |
| 2-7/8 | 8-1/2 | 68 | 54,900 | 215 |
| 3 | 9 | 72 | 57,500 | 242 |
| 3-1/4 | 10 | 80 | N/A | N/A |
| 3-1/2 | 11 | 88 | N/A | N/A |
| 4 | 12 | 96 | N/A | N/A |
| 4-1/4 | 13 | 104 | N/A | N/A |
| 4-5/8 | 14 | 112 | N/A | N/A |
| 5 | 15 | 120 | N/A | N/A |
