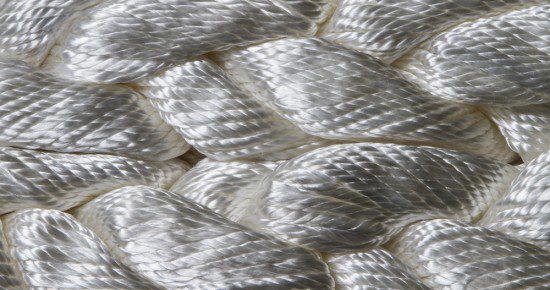

Nylon – High tenacity white multifilament nylon fiber. Exceeds Cordage Institute weight and strength specification. Black/Red/Black yarn marker in single strand.
Features
- Color White
- Black/Red/Black mono poly thread marker in single strand
- High tenacity fiber with elasticity reaching 30%
- Excellent acid/alkali resistance
Applications
- Mooring Lines
- Climbing Rope
- Towing Lines
- Anchor Lines
- Forerunners
Tech Specs
- Class I Rope
- Specific Gravity: 1.14
Splicing Procedures Required (3 Strand)
- Eye splice – 3 Strand/Class I Rope
- End for End splice – 3 Strand/Class I Rope
Splicing Procedures Required (8 Strand)
- Eye splice – 8 Strand/Class I Rope
- End for End splice – 8 Strand/Class I Rope
3 Strand Premium Nylon | 8 Strand Premium Nylon | ||||
---|---|---|---|---|---|
Dia. | Circ. | MM | Min. B/S | Lbs/100′ | Min. B/S |
3/16″ | 5/8″ | 5 | 880 | 0.89 | |
1/4′ | 3/4″ | 6 | 1,485 | 1.57 | |
5/16″ | 1″ | 8 | 2,295 | 2.45 | |
3/8′ | 1-1/8″ | 9 | 3,240 | 3.55 | |
7/16′ | 1-1/4′ | 11 | 4,320 | 4.80 | |
1/2″ | 1-1/2′ | 12 | 5,670 | 6.3 | |
9/16″ | 1-3/4′ | 14 | 7,200 | 8.0 | |
5/8′ | 2″ | 16 | 8,910 | 10 | |
3/4″ | 2-1/4″ | 19 | 12,780 | 14.3 | |
13/16″ | 2-1/2″ | 20 | N/A | N/A | |
7/8″ | 2-3/4′ | 22 | 17,280 | 20 | |
1″ | 3″ | 24 | 22,230 | 25.3 | |
1-1/8″ | 3-1/2″ | 28 | 28,260 | 32.2 | |
1-1/4″ | 3-3/4″ | 30 | 34,830 | 39.7 | |
1-5/16″ | 4″ | 32 | 38,250 | 43.7 | |
1-1/2′ | 4-1/2′ | 36 | 48,600 | 57.0 | |
1-5/8″ | 5″ | 40 | 57,375 | 67 | |
1-3/4″ | 5-1/2″ | 44 | 66,150 | 78.0 | |
2″ | 6″ | 48 | 84,600 | 100 | 84600 |
2-1/4″ | 7″ | 56 | 107,100 | 127 | 107,100 |
2-1/2″ | 7-1/2″ | 60 | 131,400 | 157 | 131,400 |
2-5/8″ | 8″ | 64 | 144,000 | 173 | 144,000 |
2-7/8″ | 8-1/2″ | 68 | 171,000 | 208 | 171,000 |
3″ | 9″ | 72 | 185,400 | 226 | 185,400 |
3-1/4″ | 10″ | 80 | 224,100 | 275 | 224,100 |
3-1/2″ | 11″ | 88 | 267,300 | 329 | 267,300 |
4″ | 12″ | 96 | 324,000 | 400 | 324,000 |
4-1/4″ | 13″ | 104 | 369,000 | 460 | 369,000 |
4-5/8″ | 14″ | 112 | 418,500 | 525 | 418,500 |
5″ | 15″ | 120 | 480,600 | 610 | 480,600 |
