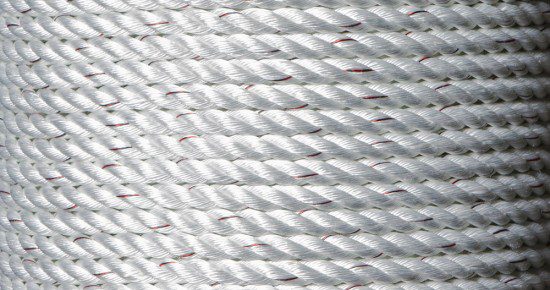

Poly-Dac – Monofilament high tenacity strand core sheathed in polyester fiber. Entire core covered with polyester utilizing a plied yarn construction to achieve maximum abrasion resistance. Black/Red/Black yarn marker in single strand.
Features
- Color White
- Made from a combination of polypropylene (core) and polyester (jacket)
- Black/Red/Black yarn marker in single strand
- Piled yard constructions
- Excellent acid/alkali resistance
- Engineered to balance the elongation characteristics
of both fiber types
Applications
- Mooring Lines
- Climbing Rope
- Towing Lines
- Barge Lines
- Net Line
- Arborist Rope
Tech Specs
- Class I Rope
- Specific Gravity: 1.38
Splicing Procedures Required (3 Strand)
- Eye splice – 3 Strand/Class I Rope
- End for End splice – 3 Strand/Class I Rope
Splicing Procedures Required (8 Strand)
- Eye splice – 8 Strand/Class I Rope
- End for End splice – 8 Strand/Class I Rope
3 Strand PolyDac | 8 Strand Polydac | ||||
---|---|---|---|---|---|
Dia. | Circ. | MM | Min. B/S | Lbs/100′ | Min B/S |
3/16″ | 5/8″ | 5 | N/A | N/A | |
1/4′ | 3/4″ | 6 | 1200 | 1.6 | |
5/16″ | 1″ | 8 | 1870 | 2.5 | |
3/8′ | 1-1/8″ | 9 | 2700 | 3.6 | |
7/16′ | 1-1/4′ | 11 | 3500 | 4.8 | |
1/2″ | 1-1/2′ | 12 | 4400 | 6.2 | |
9/16″ | 1-3/4′ | 14 | 5200 | 7.9 | |
5/8′ | 2″ | 16 | 6100 | 9.5 | |
3/4″ | 2-1/4″ | 19 | 8400 | 13.5 | |
13/16″ | 2-1/2″ | 20 | N/A | N/A | |
7/8″ | 2-3/4′ | 22 | 11125 | 18 | |
1″ | 3″ | 24 | 13175 | 21.8 | |
1-1/8″ | 3-1/2″ | 28 | 16325 | 27.1 | |
1-1/4″ | 3-3/4″ | 30 | 19900 | 33.4 | |
1-5/16″ | 4″ | 32 | 21950 | 36.5 | |
1-1/2′ | 4-1/2′ | 36 | 28250 | 47 | |
1-5/8″ | 5″ | 40 | 32950 | 55 | |
1-3/4″ | 5-1/2″ | 44 | 36850 | 62 | |
2″ | 6″ | 48 | 48050 | 81 | 52000 |
2-1/4″ | 7″ | 56 | 59950 | 101 | 69000 |
2-1/2″ | 7-1/2″ | 60 | 73550 | 124 | N/A |
2-5/8″ | 8″ | 64 | 80650 | 136 | 90000 |
2-7/8″ | 8-1/2″ | 68 | N/A | N/A | N/A |
3″ | 9″ | 72 | 102900 | 174 | 114000 |
3-1/4″ | 10″ | 80 | N/A | N/A | 137000 |
3-1/2″ | 11″ | 88 | N/A | N/A | 162000 |
4″ | 12″ | 96 | N/A | N/A | 190000 |
4-1/4″ | 13″ | 104 | N/A | N/A | N/A |
4-5/8″ | 14″ | 112 | N/A | N/A | N/A |
5″ | 15″ | 120 | N/A | N/A | N/A |
